The default keyboard assignment
This page presents the default keyboard assignment. You can fully customize the controls in the Customize controls page in the main menu, though.
-

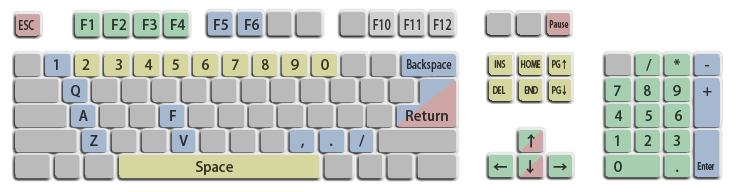

Without keyboard modifiers
-
Driving controls (blue)
-
Safety systems (yellow)
-
Camera controls (green)
-
Application controls (red)
-
Debug controls (gray)
-

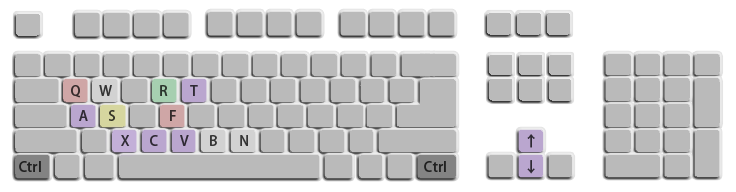

With Ctrl held down
-
Camera controls (green)
-
Application controls (red)
-
Miscellaneous controls (magenta)
-
Debug controls (gray)
|
Control
|
Default key
|
Effect
|
|
REVERSER_FORWARD
|
F
|
Moves reverser forward by one notch
|
|
REVERSER_BACKWARD
|
V
|
Moves reverser backward by one notch
|
|
POWER_INCREASE
|
Z
|
Increases power by one notch for trains with two handles
|
|
POWER_DECREASE
|
A
|
Decreases power by one notch for trains with two handles
|
|
BRAKE_DECREASE
|
Comma
|
Decreases brake by one notch for trains with two handles
|
|
BRAKE_INCREASE
|
Period
|
Increases brake by one notch for trains with two handles
|
|
BRAKE_EMERGENCY
|
Slash
|
Activates emergency brakes for trains with two handles
|
|
SINGLE_POWER
|
Z
|
Moves handle toward power by one notch for trains with one handle
|
|
SINGLE_NEUTRAL
|
A
|
Moves handle toward neutral by one notch for trains with one handle
|
|
SINGLE_BRAKE
|
Q
|
Moves handle toward brake by one notch for trains with one handle
|
|
SINGLE_EMERGENCY
|
1
|
Activates emergency brake for trains with one handle
|
|
DOORS_LEFT
|
F5
|
Opens or closes the left doors
|
|
DOORS_RIGHT
|
F6
|
Opens or closes the right doors
|
|
HORN_PRIMARY
|
Return
|
Plays the primary horn
|
|
HORN_PRIMARY
|
Keypad Enter
|
Plays the primary horn
|
|
HORN_SECONDARY
|
Keypad Plus
|
Plays the secondary horn
|
|
HORN_MUSIC
|
Keypad Minus
|
Plays or stops the music horn
|
|
DEVICE_CONSTSPEED
|
Backspace
|
Activates or deactivates the constant speed device
|
There are two kinds of safety systems: The built-in systems, which are ATS-SN, ATS-P and ATC, and custom plugins. The meaning of the keys for the built-in systems are stated below. For custom plugins, you need to consult the documentation for the respective train.
|
Control
|
Default key
|
Effect
|
Built-in safety system behavior
|
|
SECURITY_S
|
Space
|
The S function
|
Cancels the ATS alarm
|
|
SECURITY_A1
|
Insert
|
The A1 function
|
Cancels the ATS chime
|
|
SECURITY_A2
|
Del
|
The A2 function
|
Cancels the EB device
|
|
SECURITY_B1
|
Home
|
The B1 function
|
Resets ATS-P
|
|
SECURITY_B2
|
End
|
The B2 function
|
Aquires a brake release for ATS-P
|
|
SECURITY_C1
|
Page up
|
The C1 function
|
Switches to ATS
|
|
SECURITY_C2
|
Page down
|
The C2 function
|
Switches to ATC
|
|
SECURITY_D
|
2
|
The D function
|
Enables the safety systems
|
|
SECURITY_E
|
3
|
The E function
|
Disables the safety systems
|
|
SECURITY_F
|
4
|
The F function
|
None
|
|
SECURITY_G
|
5
|
The G function
|
None
|
|
SECURITY_H
|
6
|
The H function
|
None
|
|
SECURITY_I
|
7
|
The I function
|
None
|
|
SECURITY_J
|
8
|
The J function
|
None
|
|
SECURITY_K
|
9
|
The K function
|
None
|
|
SECURITY_L
|
0
|
The L function
|
None
|
|
Control
|
Default key
|
Effect
|
|
CAMERA_INTERIOR
|
F1
|
Switches to the train's interior view
|
|
CAMERA_EXTERIOR
|
F2
|
Switches to the train's exterior view
|
|
CAMERA_TRACK
|
F3
|
Switches to the track view
|
|
CAMERA_FLYBY
|
F4
|
Switches between different fly-by views
|
|
CAMERA_MOVE_FORWARD
|
Keypad 9
|
Moves the camera forward
|
|
CAMERA_MOVE_BACKWARD
|
Keypad 3
|
Moves the camera backward
|
|
CAMERA_MOVE_LEFT
|
Keypad 4
|
Moves the camera left
|
|
CAMERA_MOVE_RIGHT
|
Keypad 6
|
Moves the camera right
|
|
CAMERA_MOVE_UP
|
Keypad 8
|
Moves the camera up
|
|
CAMERA_MOVE_DOWN
|
Keypad 2
|
Moves the camera down
|
|
CAMERA_ROTATE_LEFT
|
Left
|
Rotates the camera left
|
|
CAMERA_ROTATE_RIGHT
|
Right
|
Rotates the camera right
|
|
CAMERA_ROTATE_UP
|
Up
|
Rotates the camera up
|
|
CAMERA_ROTATE_DOWN
|
Down
|
Rotates the camera down
|
|
CAMERA_ROTATE_CCW
|
Keypad Divide
|
Rotates the camera counter-clockwise
|
|
CAMERA_ROTATE_CW
|
Keypad Multiply
|
Rotates the camera clockwise
|
|
CAMERA_ZOOM_IN
|
Keypad Period
|
Zooms the camera in
|
|
CAMERA_ZOOM_OUT
|
Keypad 0
|
Zooms the camera out
|
|
CAMERA_POI_PREVIOUS
|
Keypad 1
|
Jumps to the previous point of interest
|
|
CAMERA_POI_NEXT
|
Keypad 7
|
Jumps to the next point of interest
|
|
CAMERA_RESET
|
Keypad 5
|
Resets the camera view to default values
|
|
Control
|
Default key
|
Effect
|
|
MENU_ACTIVATE
|
Escape
|
Displays the in-game menu
|
|
MENU_UP
|
Up
|
Moves the cursor up within the in-game menu
|
|
MENU_DOWN
|
Down
|
Moves the cursor down within the in-game menu
|
|
MENU_ENTER
|
Return
|
Performs the selected command within the in-game menu
|
|
MENU_BACK
|
Escape
|
Goes back within the in-game menu
|
|
MISC_PAUSE
|
Pause
|
Pauses or resumes the simulation
|
|
Control
|
Default key
|
Effect
|
|
MISC_INTERFACE
|
F10
|
Changes between interface modes
|
|
MISC_BACKFACE
|
F11
|
Activates or deactivates backface culling
|
|
MISC_CPUMODE
|
F12
|
Switches to or from reduced CPU mode
|
|
Control
|
Default key
|
Effect
|
|
CAMERA_RESTRICTION
|
Ctrl + R
|
Turns camera restriction for panels on or off
|
|
Control
|
Default key
|
Effect
|
|
MISC_QUIT
|
Ctrl + Q
|
Quits the simulation
|
|
MISC_FULLSCREEN
|
Ctrl + F
|
Toggles from or to full-screen mode
|
|
Control
|
Default key
|
Effect
|
|
MISC_AI
|
Ctrl + A
|
Activates or deactivates the virtual driver (AI)
|
|
MISC_CLOCK
|
Ctrl + C
|
Shows or hides the clock
|
|
MISC_SPEED
|
Ctrl + V
|
Toggles through different speed display modes
|
|
MISC_FPS
|
Ctrl + X
|
Shows or hides the frame rate display
|
|
MISC_TIMEFACTOR
|
Ctrl + J
|
Toggles through different time acceleration factors
|
|
MISC_MUTE
|
Ctrl + M
|
Mutes sound or resumes playing sounds
|
|
TIMETABLE_TOGGLE
|
Ctrl + T
|
Toggles through different timetable modes
|
|
TIMETABLE_UP
|
Ctrl + Up
|
Scrolls the timetable up
|
|
TIMETABLE_DOWN
|
Ctrl + Down
|
Scrolls the timetable down
|
|
Control
|
Default key
|
Effect
|
|
DEBUG_WIREFRAME
|
Ctrl + W
|
Activates or deactivates wireframe mode
|
|
DEBUG_BRAKE
|
Ctrl + B
|
Shows or hides brake system debug output
|
|
DEBUG_NORMALS
|
Ctrl + N
|
Shows or hides vertex normals
|
